Simon Says is a classic children’s game in which one player, acting as “Simon,” gives commands that the other players must follow—but only if the command begins with “Simon says.”
***Laser-Cut Button Box ***
This toy features a laser-cut enclosure with four buttons. A programmed lighting sequence is randomly generated, and the player must replicate the same sequence by pressing the corresponding buttons to win. This toy was developed as a demonstration for the laser-cutting component of the toy design course I teach.
This is a project adapted from this original project:
https://www.instructables.com/Arduino-Simon-Says-Game-1/
A laser cutting box is built for housing all the electronics components. The box is made with 1/4 inches Baltic Birch plywood, laser cut on a CO2 laser cutter.

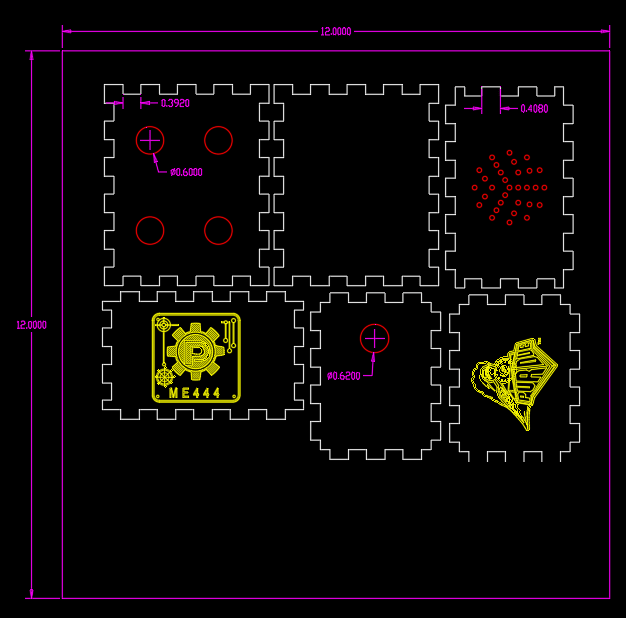

Laser cut drawing:
Electronics hardware needed:
1, one Adafruit 16mm Illuminated Pushbutton – Red Momentary
https://www.adafruit.com/product/1439
2. one Adafruit 16mm Illuminated Pushbutton – Green Momentary
https://www.adafruit.com/product/1440
3. one Adafruit 16mm Illuminated Pushbutton – Yellow Momentary
https://www.adafruit.com/product/1441
4. one Adafruit 16mm Illuminated Pushbutton – white Momentary
https://www.adafruit.com/product/1477
5. One 16mm Push Button Switch latch on/off with LED
https://www.amazon.com/dp/B0BMVQT9CD/
6 one Aduino Nano
https://www.amazon.com/dp/B086GNYXPH/
7 One 9V battery
8. One mini speaker/buzzer

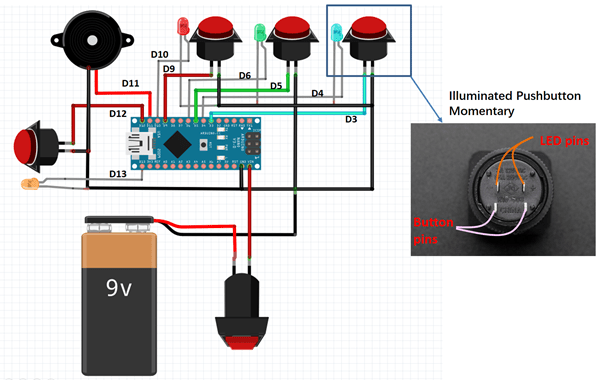

Circuit Diagram:
